Have you been thinking about connecting a headboard to your bed frame? With zero drilling and any special tools, you can securely fasten any headboard. We’ll cover everything so your bed frames and headboards work in harmony.

Sleep soundly knowing your setup won’t shift or wobble again.

Before Install a Headboard on Your Bed Frame

It will take you just five minutes to identify your bed frame and headboard type before installing your headboard. This is a crucial step and will help you prevent any mismatched hardware and installation steps.

• You should start it by examining your bed frame's head end. If you see metal brackets with round holes, you have a bolt-on frame. If you spot U-shaped metal hooks on the side rails, then you have a hook-on frame. It's a deal for headboards with matching slots. And no brackets and hooks on the headboard mean you'll need wall-mounted or freestanding solutions.

• After that, you have to identify your headboard type. Frame-mounted headboards have legs with pre-drilled holes for attaching directly to bed frames. Whereas wall-mounted headboards require separate wall brackets and stud mounting. Moreover, freestanding headboards have sturdy bases designed to stand independently.

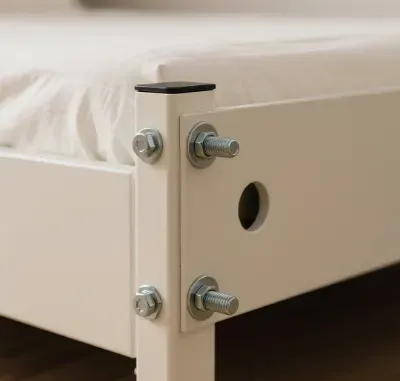

Method 1: Bolt-On/Hook-On Headboard Installation

This method will work for you if you have a headboard frame with brackets and hooks. This direct-attach method ensures rock-solid stability. You should follow these detailed steps for the method:

Before installing, you will need some tools to proceed with this method.

Tools for Bolt-on System:

• M8 hex bolts (usually 70-100 mm in length)

• Washers (prevent metal-on-metal grinding)

• Locking nuts

• Ratchet wrench and Allen key

Tools for Hook-On System:

• U-shaped receiver plates attached to headboard legs

• Bed rail hooks pre-installed on frame

• Tool: Rubber mallet for snug fits

Step-by-Step Installation Process For Method 1

Step 1: Prep Work

First, you should remove the mattress and bedding, then pull the bed frame 3 ft from the wall. Next, you should lay the headboard face-down on a soft surface.

Step 2: Hardware Check

For the bolt-on method, you should verify that the bolt diameter matches the frame holes.

And for the hook-on method, you should measure hook-to-hook distance and confirm it matches the headboard slots.

Step 3: Alignment & Connection

For the bolt-on method, you should insert bolts through the headboard leg holes into the frame brackets. Then you should hand-tighten all bolts first; don’t fully tighten yet! Finally, use the washer for the nut sequence.

For the hook-on method, you should tilt the headboard 30° toward the bed and align the slots above the lower vertical hooks. Further, you should tap the base with a rubber mallet until the "click" confirms the lock.

Finally, tighten bolts diagonally like lug nuts to prevent warping.

Method 2: Wall-Mounting Your Headboard

For frames without brackets and rental-friendly installations, wall mounting provides a secure floating look. This method requires some precision but delivers professional-grade stability.

Cleat system: 1x4 wood strip cut 2 inches shorter than the headboard width

Mounting plates, about 2 to 4, depending on headboard size

For studs, 12 wood screws of about 3" length

For drywall, you will need Snaptoggle anchors that could support up to 265 lbs.

Essential Tools:

• Electronic stud finder

• Drill/driver kit with:

• 3/16" pilot bit

• Phillips head bit

• 1/2" paddle bit for anchors

• Laser level or 48" bubble level

Step-by-Step Installation

Step 1: Wall Preparation

You should start by locating and marking studs. Then mark the stud finder against the outlet. These studs usually are 16" left/right. You should mark stud centers with "X" and verify by drilling a test hole. If you have no studs then plan for 4+ toggle bolts in drywall.

Moreover, you should place the mattress on the frame and measure from the floor to the top of the mattress. Then add 3 to 5" clearance and mark the wall at 28 to 30" height. Draw a level line across the wall at this height.

Step 2: Cleat Installation

For this step, you should place the cleat and align the top edge of the wood strip with the level line. Then mark screw points through the cleat holes on the wall.

For securing cleats, you should drill pilot holes into the studs at the marks. You can drive screws until the heads sit flush with the cleat.

And if you have drywall only, then drill 1/2 holes, insert toggle bolts, and tighten until the wings snap open.

Step 3: Headboard Preparation

So, your next step now is to attach mounting plates. You should lay the headboard face down on a padded surface and measure 1/3 down from the top. You should also mark plate positions. Drill plates into the headboard frame using the included screws.

Step 4: Hanging

Now lift it with a helper and tilt the headboard 15° toward the wall. Then hook the plates onto the cleat and slowly lower them to vertical. Listen for a "thud" indicating full seating.

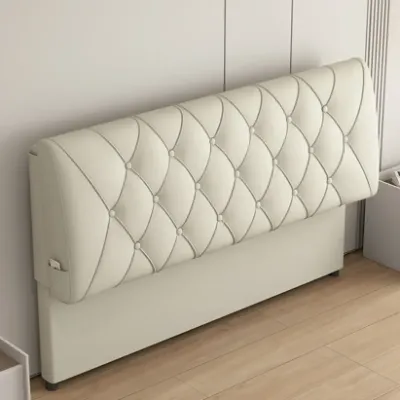

Method 3: Freestanding Headboard Setup

This method is your instant fix for renters, lightweight headboards, and zero-drill solutions. Here’s how to securely position your headboard without hardware:

• You should prep the area first. Pull the bed frame 6 to 12 inches from the wall. And clear floor debris like wires and rugs that might tilt the headboard. Then position the headboard.

• For placement, you should place the headboard flush against the wall, centered behind the bed. Don't forget to make sure its base sits flat on the floor. You can use shims under the legs if uneven.

• Then lock it in its place. Slowly push the bed frame backward until it presses firmly against the headboard. Then check for gaps. You should try to slide your hand between the mattress and headboard if >1", add furniture pads to the bed frame’s head end.

Conclusion

There you have it; now you know exactly how to attach a headboard to a bed frame. If you have any more questions, you can ask us in the comments.

Looking to buy furniture for your home? You can visit the HomeyFad website for that.

FAQs

Q: Why won’t bolts align with my bed rails?

A: Use universal bracket adapters ($12)—bends to bridge gaps.

Q: Headboard wobbles after attaching to the frame?

A: Tighten bolts diagonally and add rubber washers between surfaces.

Q: Do hooks disengage when adjusting the bed?

A: Apply threadlocker fluid to hook joints and reset them every 6 months.
